Install Lattice iCEcube2 on Linux

Do you have troubles installing iCEcube2 on your Linux computer? Lattice is providing a Linux installation for iCEcube2 here .

Following the installation instruction I ran into following issue:

$ unzip
  inflating: iCEcube2setup_Dec_10_2020_2012
$ chmod +x iCEcube2setup_Dec_10_2020_2012
$ ./iCEcube2setup_Dec_10_2020_2012
bash: ./iCEcube2setup_Dec_10_2020_2012: cannot execute: required file not found

iCEcube2 is a 32 bit executable and very probably you're running a 64 bit Linux. The solution? Install the 32 bit dependencies.

Fedora link symbol

To get iCEcube2 installed on Fedora (tested on Fedora 38):

32bit dependencies link symbol

$ sudo dnf install glibc.i686 libXext.i686 libSM.i686 libXi.i686 libXrender.i686 libXrandr.i686 libXfixes.i686 libXcursor.i686 libXinerama.i686 freetype.i686 libpng12.i686

  Verifying        : libxml2-2.10.4-1.fc38.i686                                                                                                                                                                                                                                                                         44/45
  Verifying        : p11-kit-0.25.0-1.fc38.i686                                                                                                                                                                                                                                                                         45/45

  bzip2-libs-1.0.8-13.fc38.i686          cairo-1.17.8-4.fc38.i686               fontconfig-2.14.2-1.fc38.i686          freetype-2.13.0-2.fc38.i686              glib2-2.76.5-2.fc38.i686              glibc-2.37-5.fc38.i686                 glibc-gconv-extra-2.37-5.fc38.i686          gmp-1:6.2.1-4.fc38.i686
  gnutls-3.8.1-1.fc38.i686               graphite2-1.3.14-11.fc38.i686          harfbuzz-7.1.0-1.fc38.i686             libICE-1.0.10-10.fc38.i686               libSM-1.2.3-12.fc38.i686              libX11-1.8.6-1.fc38.i686               libXau-1.0.11-2.fc38.i686                   libXcursor-1.2.1-3.fc38.i686
  libXext-1.3.5-2.fc38.i686              libXfixes-6.0.0-5.fc38.i686            libXi-1.8.1-1.fc38.i686                libXinerama-1.1.5-2.fc38.i686            libXrandr-1.5.2-10.fc38.i686          libXrender-0.9.11-2.fc38.i686          libblkid-2.38.1-4.fc38.i686                 libbrotli-1.0.9-11.fc38.i686
  libffi-3.4.4-2.fc38.i686               libgcc-13.2.1-1.fc38.i686              libidn2-2.3.4-2.fc38.i686              libmount-2.38.1-4.fc38.i686              libpng-2:1.6.37-14.fc38.i686          libpng12-1.2.57-17.fc38.i686           libseLinux-3.5-1.fc38.i686                  libsepol-3.5-1.fc38.i686
  libstdc++-13.2.1-1.fc38.i686           libtasn1-4.19.0-2.fc38.i686            libunistring-1.1-3.fc38.i686           libunistring1.0-1.0-1.fc38.i686          libuuid-2.38.1-4.fc38.i686            libxcb-1.13.1-11.fc38.i686             libxml2-2.10.4-1.fc38.i686                  nettle-3.8-3.fc38.i686
  p11-kit-0.25.0-1.fc38.i686             pcre2-10.42-1.fc38.1.i686              pixman-0.42.2-1.fc38.i686              xz-libs-5.4.1-1.fc38.i686                zlib-1.2.13-3.fc38.i686


eth0 device link symbol

The license manager is searching for a eth0 device to compare the MAC address. To achive this, we have to tell the linux kernel while booting.

Add net.ifnames=0 to GRUB_CMLINE_LINUX in the file /etc/default/grub:

GRUB_DISTRIBUTOR="$(sed 's, release .*$,,g' /etc/system-release)"
GRUB_CMDLINE_LINUX="rd.luks.uuid=luks-ff974974-8e99-4833-ab19-af4bd2b0a201 rhgb quiet net.ifnames=0"

Now we need to re-build the grub bootloader:

$ grub2-mkconfig -o /boot/grub2/grub.cfg

Now we are ready to reboot.

Install link symbol

Install iCEcube2 by starting the installer:

$ ./iCEcube2setup_Dec_10_2020_2012

Extend library path link symbol

I was still unable to start iCEcube2 and after digging a while, here is the solution. Adding /usr/lib/ to the library path helped. Open the config.xml path in the iCEcube2 installation path and add the path:

 <ProductId organizationName="Lattice" organizationDomain="">iCEcube 2008.6</ProductId>
  <LM_LICENSE_FILE append="0" userInput="LM_LICENSE_FILE">/home/guenther/license.dat</LM_LICENSE_FILE>
  <SBT_DIR append="0">$(RootPath)/sbt_backend</SBT_DIR>

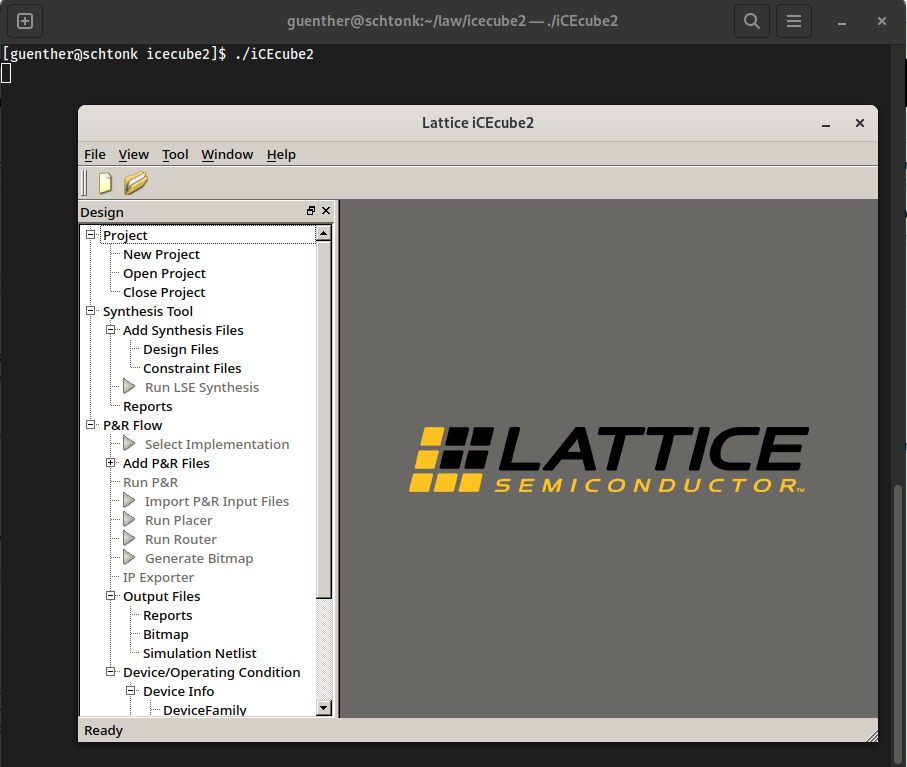

Starting iCEcube2 link symbol

Now starting should work as expected.


Ubuntu link symbol

You find a detailed installation guide on .

General advice cannot execute: required file not found link symbol

This message is not really helpful. Use file do see if the executable is a 32-bit file (or maybe even another processor architecture).

$ file iCEcube2setup_Dec_10_2020_2012
iCEcube2setup_Dec_10_2020_2012: ELF 32-bit LSB executable, Intel 80386, version 1 (SYSV), dynamically linked, interpreter /lib/, for GNU/Linux 2.2.5, not stripped

The first thing missing here is glibc for the required architecture. See the following chapters how to install.

$ sudo dnf install glibc.i686  # or whatever is needed to get glibc for the required architecture onto your system

After installing glibc, you get more information.

$ ./iCEcube2setup_Dec_10_2020_2012
./iCEcube2setup_Dec_10_2020_2012: error while loading shared libraries: cannot open shared object file: No such file or directory

Now we have at least a clue about what is missing...
